Technical specifications

Power supply:	230 V AC, 50 Hz
Power consumption:	740 W
Power connection:	Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided)
Warm-up time:	Approx. 4 min
Output distance:	Approx. 4 m
Tank capacity:	2.7 l water-based fluid removable tank
Fluid consumption:	Approx. 8.5 ml/min
DMX input:	1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version 1 x 5-pin XLR (F) mounting version
Control:	Stand-alone; DMX; wireless remote control upgradeable; W-DMX by wireless solution upgradeable; timer
Housing color:	Black
Heater:	700 W
Display type:	LCD display
Use of brands:	Built with NEUTRIK connector
Color:	Black
Dimensions:	Width: 27.5 cm Depth: 60.8 cm Height: 28.6 cm
Weight:	14.40 kg
Noise classification:	Class 2 (slight noise)

Packaging units

PU	EAN	Weight	Dimensions
1	4719850651824	16,40 kg	71cm x 40cm x 43cm
1	4026397546286	16,40 kg	71cm x 40cm x 43cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

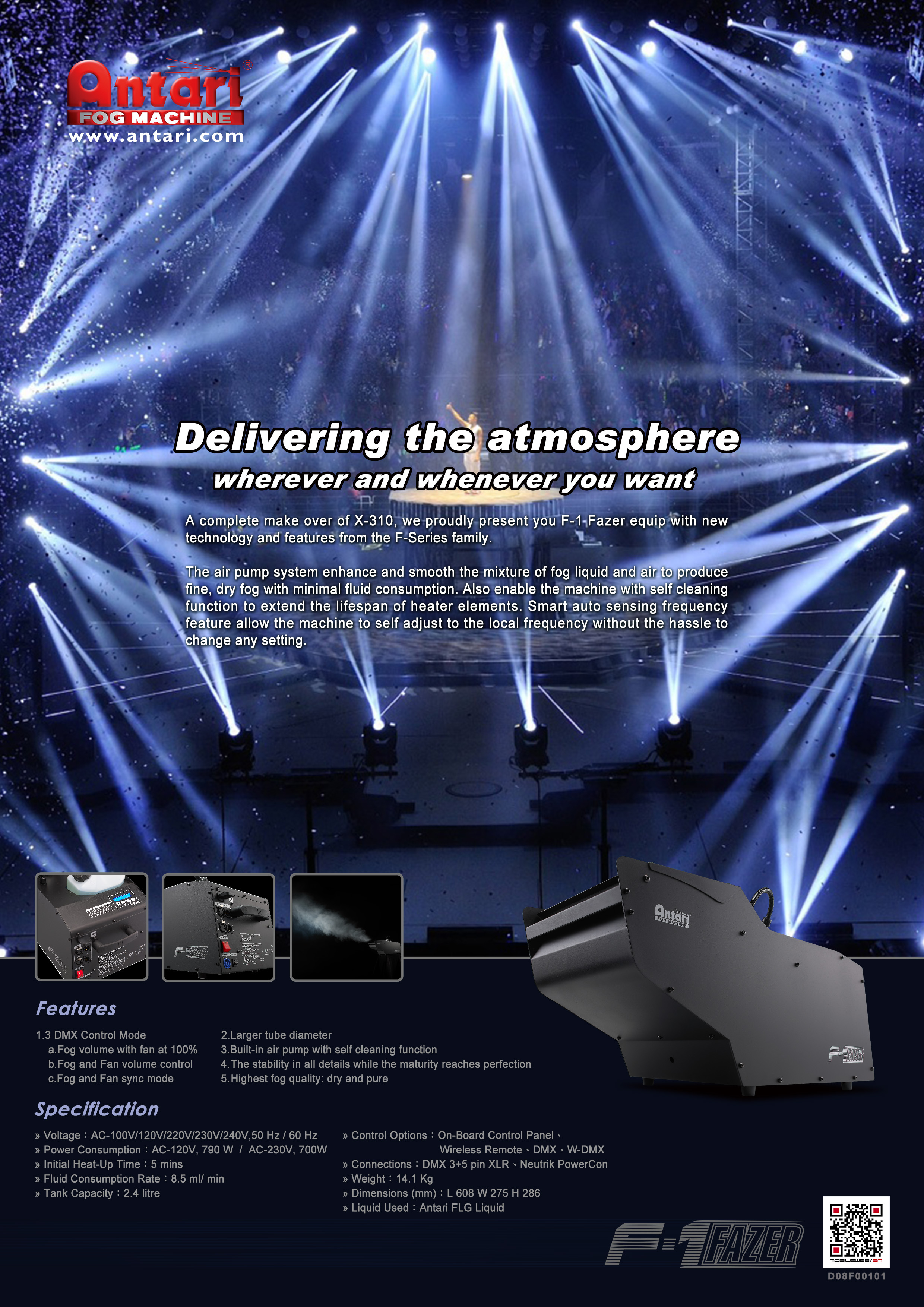

Data sheet

Name	Version	Language

All images

Name	Version	Language
51702678-Images-.zip

Publications

On page: 50

Size: 22 MB

ANTARI F-1 Fazer

Name: ANTARI F-1 Fazer
Brand: ANTARI
SKU: 51702678
Price: 869.00 EUR
Availability: InStock

Stock for approx. 12 wk(s)

869,00 €

Find a dealer

Stock for approx. 12 wk(s)

List price excl. 19% VAT
Prices in retail stores may vary.

No. 51702678

Silent fazer with 700 W and optional wireless control system

Silent fazer based on the X-310, equipped with new technology and feateures from the F series
Optimized air pump system produces fine, dry fog with minimal fluid consumption
Ideal for accentuating light and laser beams
Self-cleaning function
Adjustable timer with interval, duration and output volume
Continuous output with adjustable snow volume or manual activation with maximum snow volume
Synchronous fan and fog volume control possible
Rugged metal housing
Short warm-up time
Output distance: Approx. 4 m
Operates on water-based fluid
Removable tank
Control via stand-alone; DMX; wireless remote control upgradeable; W-DMX by wireless solution upgradeable; timer
LCD display
Built with NEUTRIK connector
For application areas such as: Clubs/dancing school; stage; theater; rental
Application possibility: Standing
For further information about this product, please refer to the Data Sheet under "Downloads"
